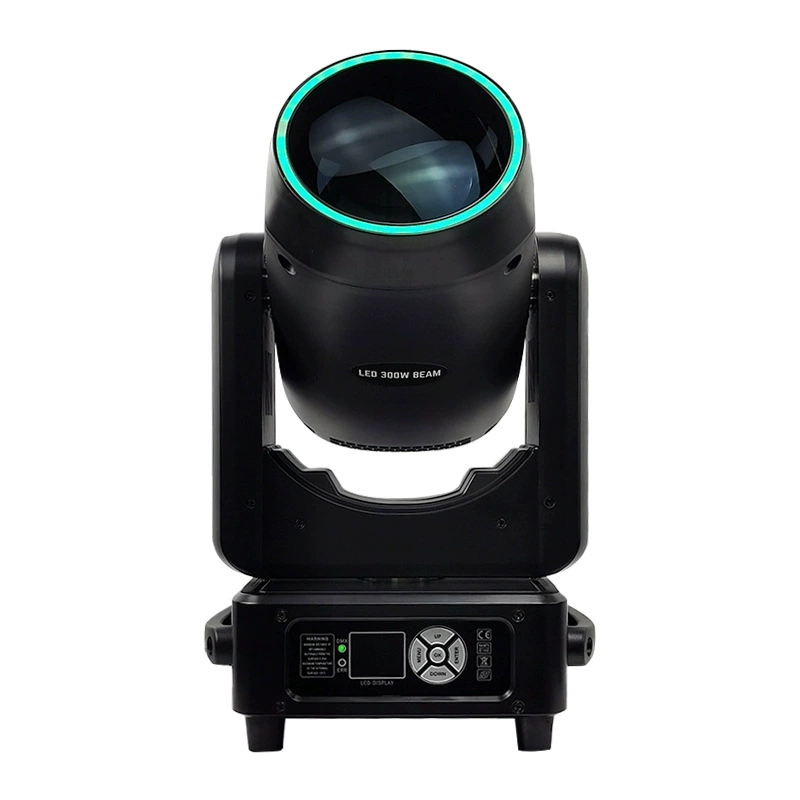

LED300W Moving Head Light
Product Name: LED300W Moving Head Light
Model: MG-246
Product Parameters
| Model |
MG-L300 |
| Light Source |
300W LED |
| Power |
350W |
| Input Voltage |
AC100-240V, 50/60Hz |
| Color Temperature |
7000K-8000K |
| Beam Angle |
1.8° |
| Light Source Life |
50,000 hours |
| DMX Channel |
24 CH |
| Color Wheel |
13 colors + white light, rainbow effect, half-color change |
| Fixed Pattern |
10 patterns + 3 figures + white light |
| Prism |
Dual prism: 8-facet + 8+16+24-facet (diamond optional) |
| Pan/Tilt |
Horizontal 540° / Vertical 270° (16-bit) |
| Dimming |
0-100% linear dimming |
| Atomization |
0-100% linear atomization |
| Rainbow |
6-rainbow effect tray |
| Special Effects |
LED point control halo, horse racing, chasing effects |
| Control Mode |
DMX512 / Self-walking / Voice Control / Master-Slave |
| Display |
LCD display with temperature, Chinese/English, inverted |
| IP Rating |
IP20 (Indoor use) |
| Size |
51 x 40 x 35cm |
Features
- High power 300W LED with ultra-narrow 1.8° beam
- Dual prism system for complex effects
- Linear atomization for soft lighting
- LED point control for dynamic halo effects
- Automatic XY error correction
- Ideal for large stage and touring applications
