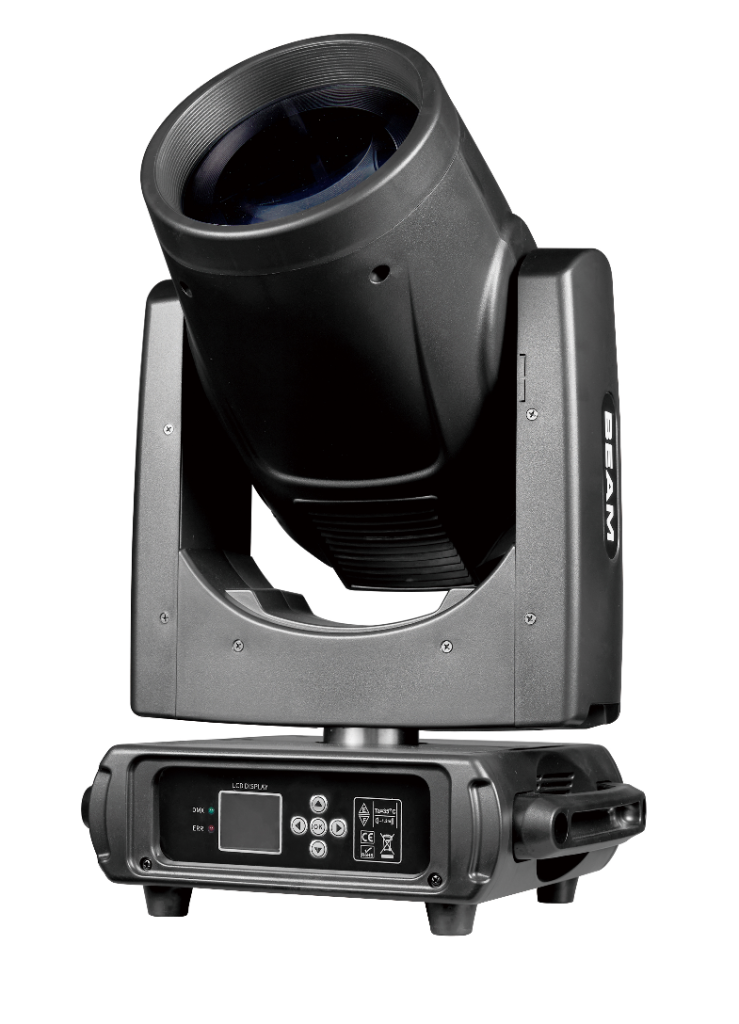

380W Moving Head Light

Product Name: 380W Moving Head Light/Model: MG-380

Voltage: AC 100-240V, 50/60Hz

Power Consumption: 600W

Light Source: OSRAM SIRIUS HRI 380

Ballast: Electronic Ballast

Channels: 16 control channels, dual operating modes, DMX512 receiver

Display: LED LCD display with Chinese/English interface

Optical System

Color Engine:

• Color 1: 1 color wheel with 14 colors + white light (half-color & bidirectional flow)
• Color 2: 1 rainbow color wheel

Pattern System:

• 1 fixed pattern wheel with 17 patterns + white light (jitter effect & bidirectional flow)

Prism Assembly:

• 8+16-facet prism + 24-facet prism (stackable)

Dynamic Effects:

• Strobe: Mechanical dimming, 0.5-14Hz strobe (pulse/random modes)
• Iris: Motorized iris (0-100% linear control)
• Focus: Gradual soft focus effect, beam angle 5°-30°, linear zoom 0°-25°

Motion & Control

Movement Range:

• Horizontal: 540°, 8/16-bit resolution
• Vertical: 245°, 8/16-bit resolution

Reset Mechanism:

• Photoelectric reset system with auto-unlock for accidental misalignment

Thermal Management:

• Overheat protection with temperature-synced fan speed control

Smart Features:

• Remote bulb control with automatic power reduction when shutter closed

Environmental Specifications

Protection Rating: IP20
