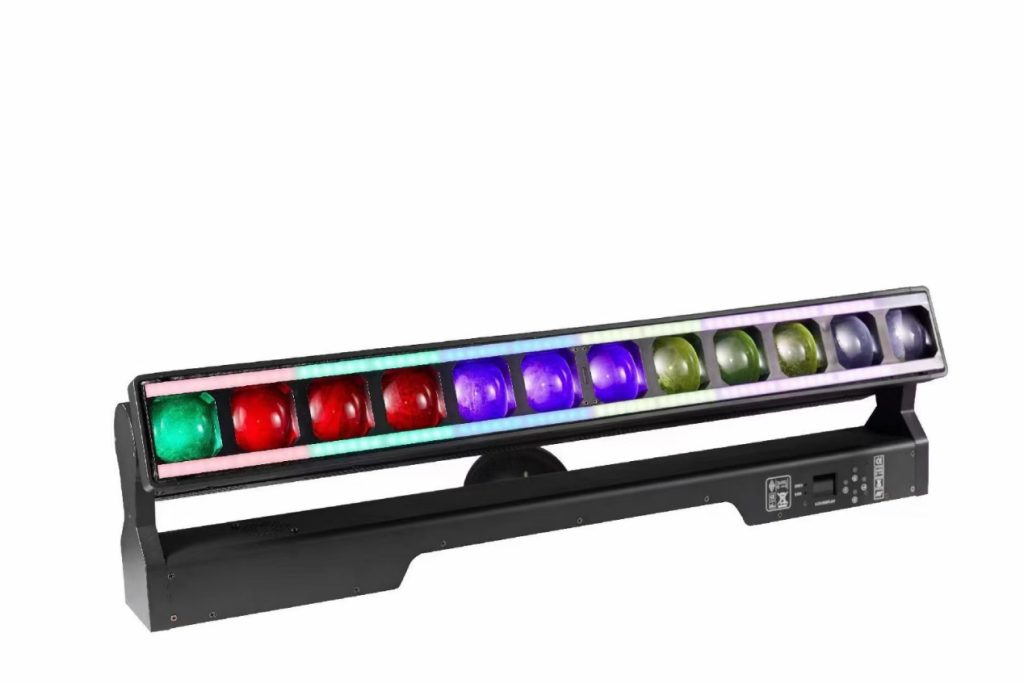

12Pcs Moving Head Matrix Light
Product Name: 12Pcs Moving Head Matrix Light
Model: MG-266
Product Parameters
| Model |
MG-Y012 |
| Light Source |
12 x 40W 4-in-1 LEDs + 144 x 0.3W 5050 RGB |
| Power |
500W |
| Input Voltage |
AC100-240V, 50/60Hz |
| Operating Temperature |
-30°C to 50°C |
| Strobe Frequency |
1-30 Hz |
| DMX Channel |
CH26 / CH38 / CH62 / CH74 / CH194 |
| Dimming |
32-bit 0-100% linear |
| Control Mode |
DMX512 / Self-walking / Master-Slave / Sound / RDM |
| Features |
Y-shaped head movement + beam + strobe + fill light |
| Connection |
DMX512 input/output, power input/output |
| Housing |
Metal, black |
| IP Rating |
IP20 (Indoor use) |
Features
- 12 moving heads with 40W 4-in-1 LEDs
- 144 additional RGB LEDs for fill lighting
- Y-shaped head movement for dynamic effects
- Multiple DMX channel modes
- 32-bit high-precision dimming
- Perfect for stage matrix effects and dynamic lighting
